Ordos One Courtyard Power Distribution Project Successfully Energised

1. Project at a Glance

2. What “Energised” Actually Means

Energisation is the moment a distribution system stops being an installation and starts being infrastructure.

Until then, progress is measured in things that can be ticked off: cabinets positioned, circuits wired, protection configured, signals tested. Energisation is different in kind. It is the instant the system begins carrying live load and serving the people it was built for — and from that point on, there is no convenient moment left to discover that something was missed.

Which is why “successfully energised” is best read as a summary of everything that happened before it.

3. The Work Behind a Smooth Switch-On

A switch-on that goes smoothly is rarely an accident. It is the product of work that mostly happens out of sight:

• Every circuit traced back to the drawings. Phase rotation, numbering and destination confirmed rather than assumed.

• Protection settings applied as designed. Then proven to operate, not simply entered and left.

• Interlocks, signals and indications verified. So that the control system tells the truth about the equipment it monitors.

• Labelling, drawings and physical conditions reconciled. Brought into exact agreement, so that no one has to guess later.

• A final sweep before switch-on. Temporary measures removed, cabinet doors, sealing and grounding restored one by one, energisation and contingency plans confirmed in parallel.

None of this appears in a photograph of a breaker being closed. All of it decides what happens afterwards.

4. Field Record

Below is the field record from the Ordos One Courtyard power distribution project.

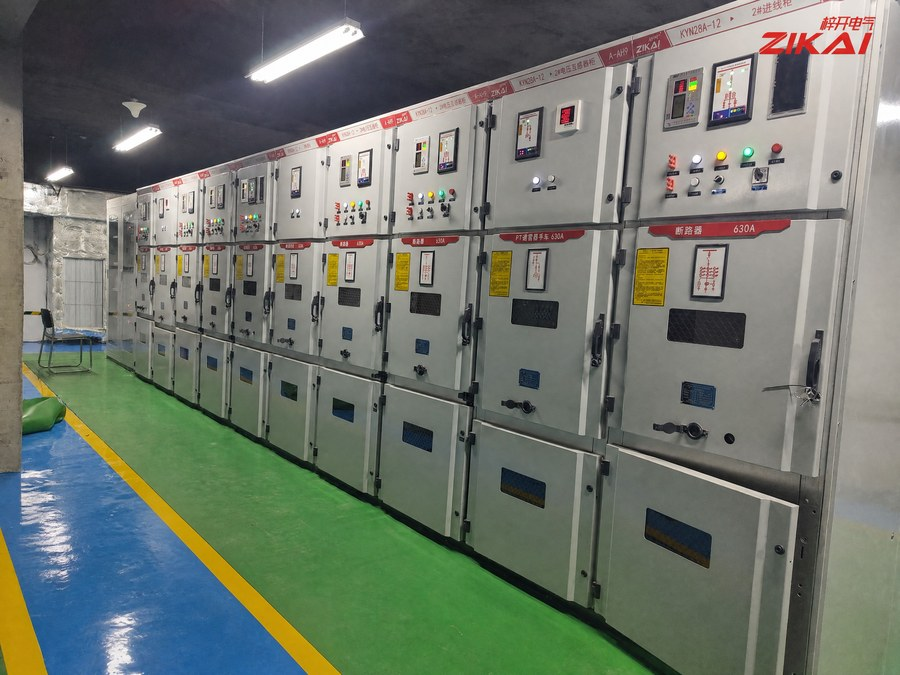

Figure 01  The high-voltage switchgear line-up. KYN28A-12 switchgear set out in a row inside the distribution room, with clear operating and inspection access.

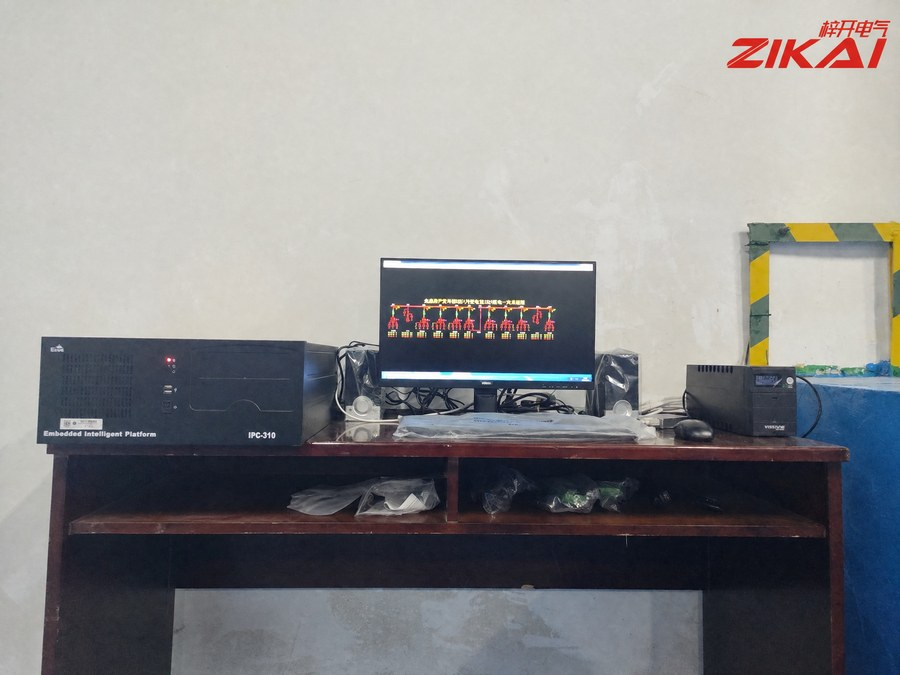

Figure 02  The monitoring workstation. The display shows the system diagram and operating status in real time, supported by an embedded intelligent platform and uninterruptible power supply.

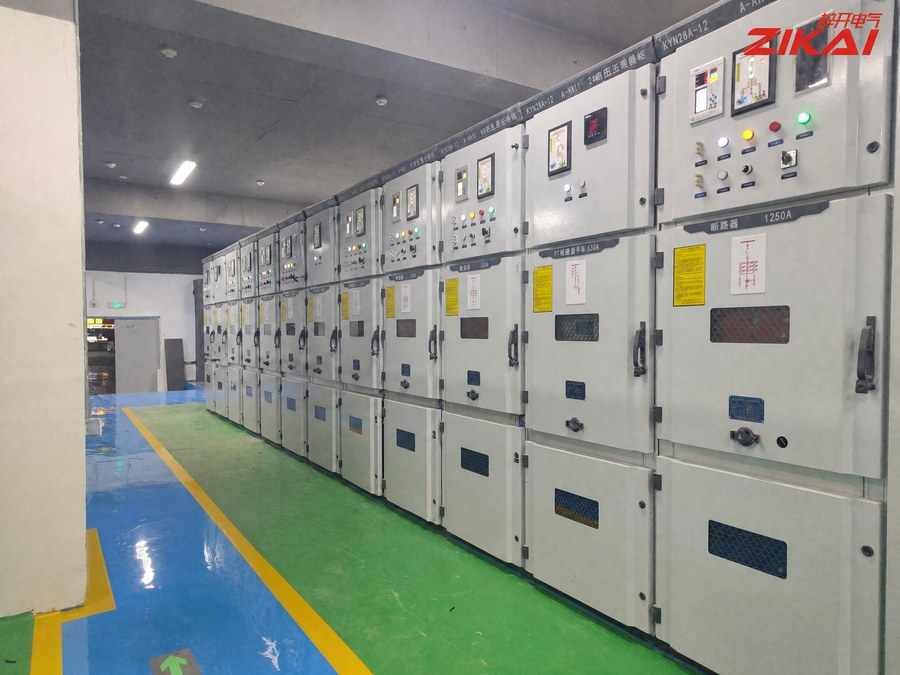

Figure 03  Markings and diagrams on the cabinets. Model data, the primary system diagram and safety warnings are printed on the panels, easy to check item by item during operation and maintenance.

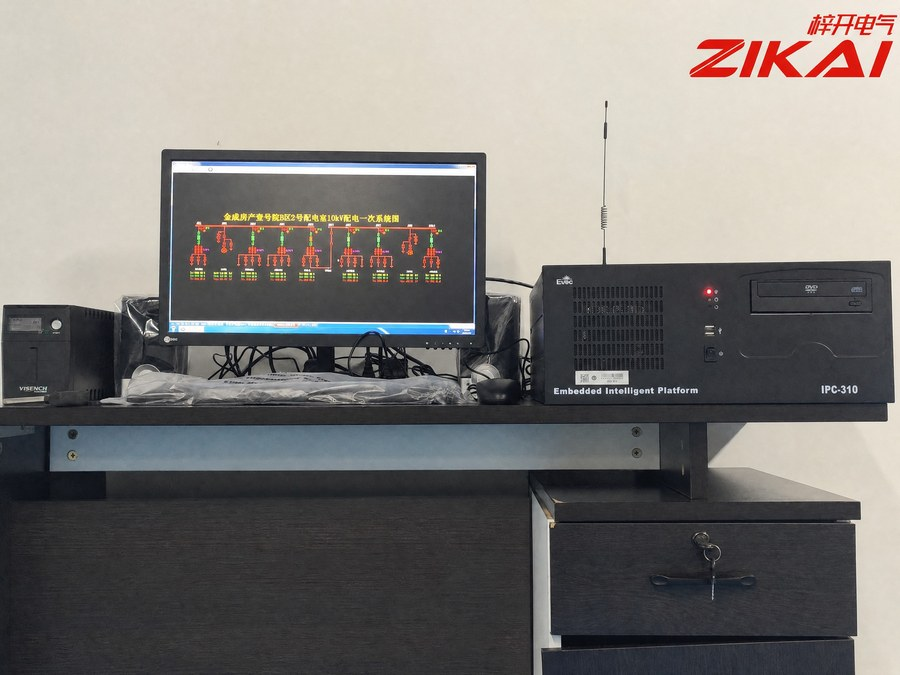

Figure 04  Commissioning and monitoring equipment. The embedded intelligent platform works with the monitoring host for data acquisition and status supervision.

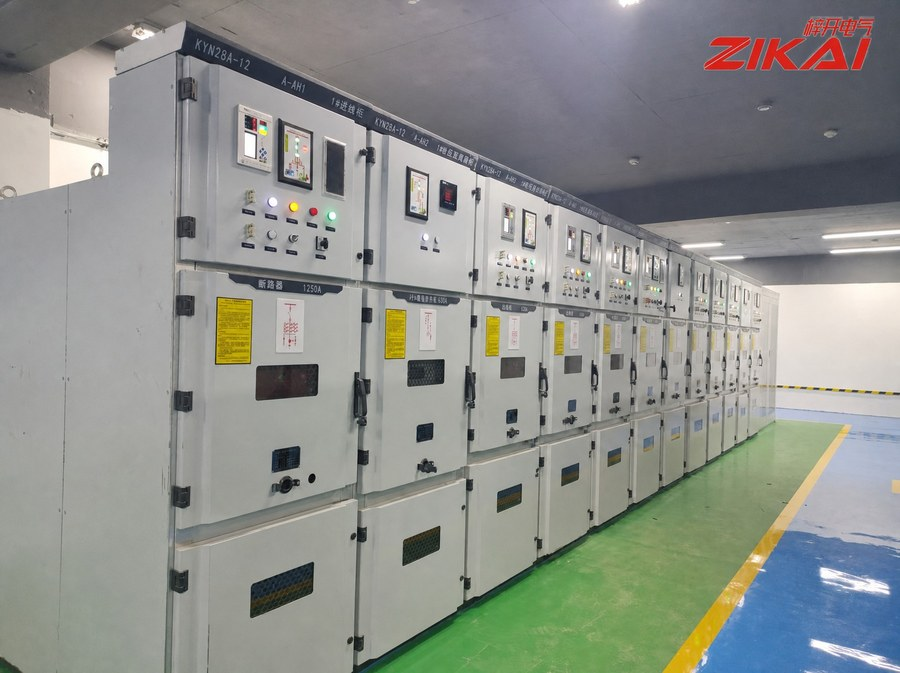

Figure 05  Overall layout of the distribution room. The cabinet rows are set out squarely, with access in front kept clear.

5. What Sites Like Ordos Demand

Ordos sits on the Inner Mongolia plateau, and the climate there is not gentle. Winters are long and cold, the gap between summer highs and winter lows is wide, and wind-blown dust is part of everyday life.

For a power distribution system, those conditions translate into specific pressures: insulation that has to remain dependable across a wide temperature range, enclosures that keep dust out over years rather than weeks, and connections that hold their integrity through repeated thermal cycling.

Equipment installed in a mild, stable environment can tolerate a degree of approximation. Equipment installed here cannot. The standard applied on site — correct torque, correct sealing, correct separation, correct labelling — is what carries an installation through its first winter and its tenth.

6. Delivery Does Not End at Switch-On

Energisation is a handover point, not an exit. Once a system is live, what matters to an owner is whether it can be maintained, expanded and diagnosed without guesswork. That is why every project we hand over leaves with documentation reflecting the site as built, records of what was confirmed and when, and a team that can still be reached afterwards.

7. About Zikai Electric

Zikai Electric (ZIKAI) manufactures, retrofits and services complete power equipment packages, covering substations, distribution assemblies and associated works. Our projects run from coastal cities to the Inner Mongolia plateau, and from industrial plants to residential communities. The work stays concrete: keep equipment stable under real operating conditions, and be there when the client needs us.

8. Talk to Us

Do you have a distribution project approaching energisation, or an existing system that needs commissioning, acceptance or retrofit work? Tell us about the site and the schedule, and we will start with a straight assessment of what the project actually needs.
